Amplifier and Power Supply 60A, 60AP
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1951 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 355001

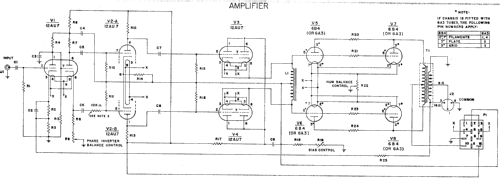

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplifier and Power Supply 60A, 60AP - Fisher Radio; New York NY
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7.25 x 7.75 x 14.5 inch / 184 x 197 x 368 mm
- Notes
-

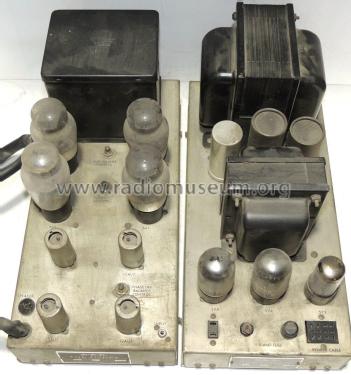

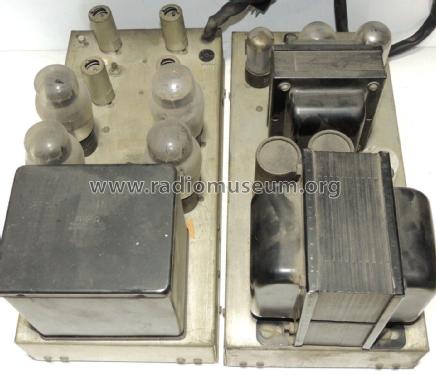

The Fisher power amplifier 60A, with separate power supply chassis 60AP, along with the Fisher AM/FM Tuner & Preamp 60R were part of the Fisher Custom Sixty consoles, which first debuted in late 1950 as a 1951 model.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
