Anniversary Series 90-T

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148156

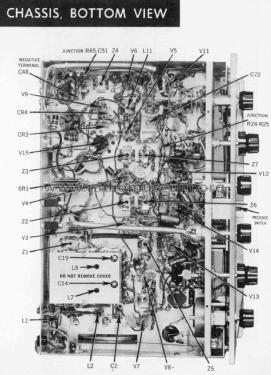

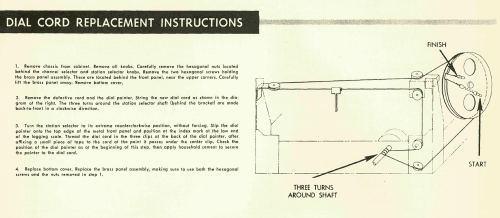

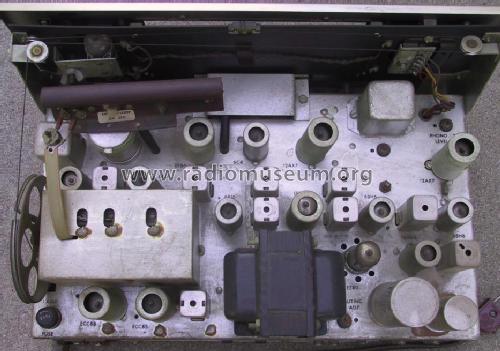

• Picture

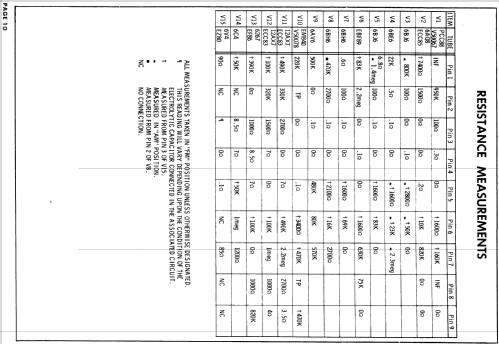

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PCC88 6AQ8 6BJ6 6BE6 EM840 6BJ6 EBF89 6BH6 6BH6 6AV6 12AX7 12AX7 6267 6C4 6V4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Anniversary Series 90-T - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15.125 x 7 x 10.875 inch / 384 x 178 x 276 mm

• Notes
• Tuner + PreAmp, mono, with Multiplex output.

• Net weight (2.2 lb = 1 kg)
• 23 lb 0 oz (23 lb) / 10.442 kg

• Price in first year of sale
• 240.00 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-58, Set 425, Folder 7)

• Literature/Schematics (2)
• Radio Shack Catalog (1959; page 17)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
