• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1978

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 220632

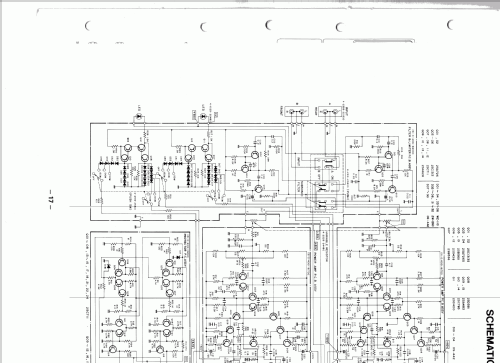

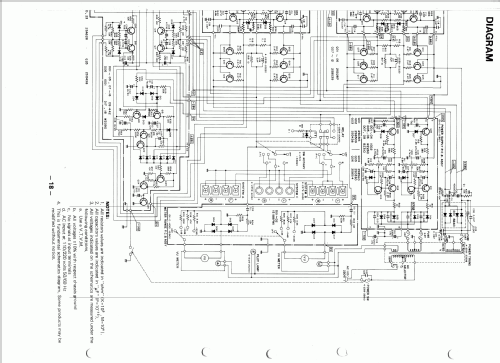

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 300 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: BA-4500 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Notes
• HiFi Endverstärker. Sinus 2x 150W an 8 Ohm. Made in Japan.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
