Chadwick 460T/660A Modern Cabinet
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214822
- Number of Tubes
- 20
- Valves / Tubes
- ECC85 6AU6 6AU6 6AU6 6BA6 6BE6 6EQ7 12AX7 12AX7 12AX7 12AX7 12AX7 12AX7 7591 7591 7591 7591 12AX7 12AX7 12AX7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer); Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chadwick 460T/660A [Modern Cabinet] - Fisher Radio; New York NY
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 45 x 32 x 19 inch / 1143 x 813 x 483 mm
- Notes
-

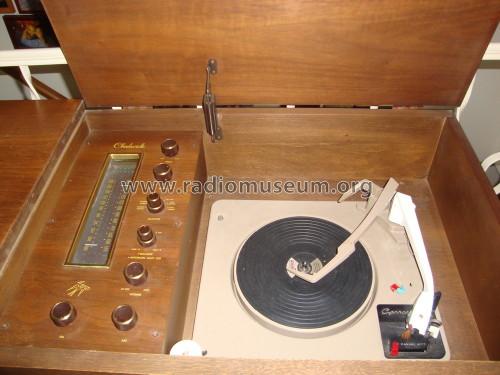

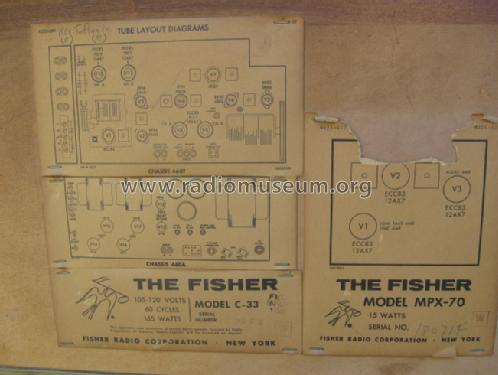

This is the 1962 Fisher Chadwick in the Modern cabinet. It consists of the 440-T tuner and the 660-A amplifier. This model was made in a variety of cabinets.
This example comes with the MPX-70 multiplex unit.
The MPX-70 multiple unit is an option. The MPX-70 uses 3 tubes bringing the total number of tubes to 20. There are 17 tubes without the MPX-70.
- Price in first year of sale
- 595.00 USD
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
