• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1955 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 277284

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SC7 12AX7 EL84 EL84 5Y3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

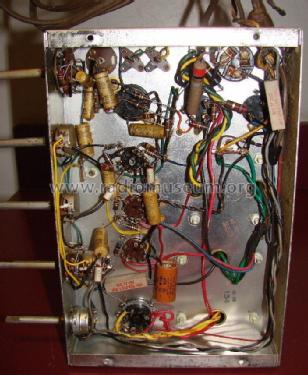

• Model: Chassis 51 - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 10.25 x 6.75 x 6 inch / 260 x 171 x 152 mm

• Notes

• Console Amplifier, mono.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
