Contemporary C800 Ch=R-20

Fisher Radio; New York (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Fisher Radio; New York (NY)

Year
1957/1958

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
214824

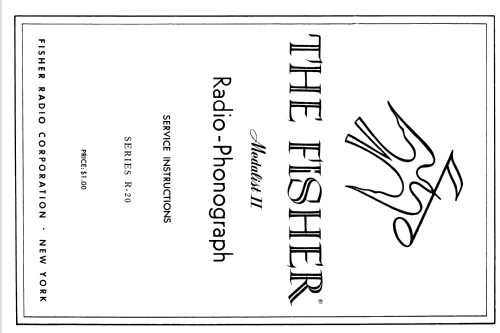

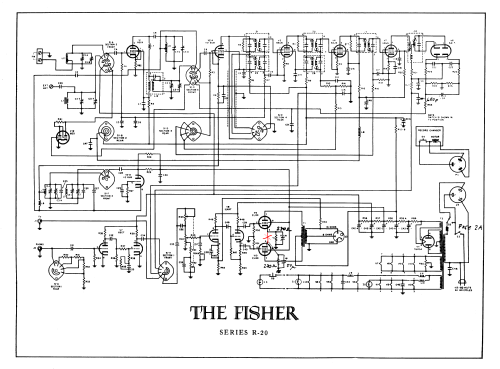

Schematics

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576430) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576431) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576432) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576433) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576434) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576435) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576436) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576437) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576438) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 2576439) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (3)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369892) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369891) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369893) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1282517) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (2)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369890) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369894) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369895) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369896) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369898) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369899) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Contemporary C800 Ch=R-20; Fisher Radio; New (ID = 1369900) Radio — Fisher Radio; New Contemporary C800 Ch=R-20 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
12

Valves / Tubes
6BJ6 6BJ6 6BJ6 6CB6A 6E5 6AL5 6SC7 6U8A 12AX7 6BQ5 6BQ5 5U4GB

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Details
Changer (Record changer); Hi-Fi equipment

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
3 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: Contemporary C800 Ch=R-20 - Fisher Radio; New York NY

Shape
Console with any shape - in general

Notes

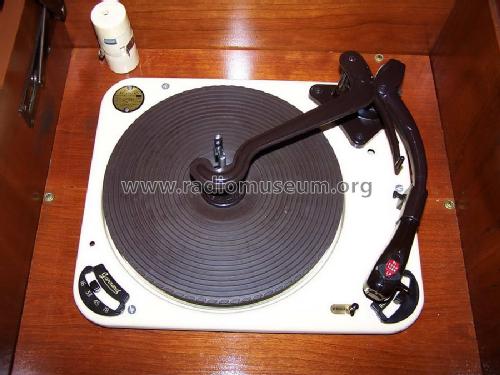

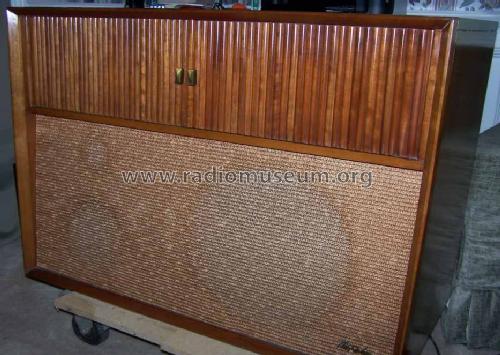

This is the 1958 Fisher Contemporary C800 mono console with the R-20 chassis. It has 3 speakers and a Garrard RC-121 record changer (unknown revision, see RC-121/Mk. II for a likely candidate). Later models might have a different record changer built in.

Price in first year of sale
429.00 USD

Author
Model page created by Jon Kummer. See "Data change" for further contributors.

Other Models
Here you find 591 models, 502 with images and 197 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Fisher Radio; New York (NY)

Collections | Museums | Literature

Collections

The model Contemporary is part of the collections of the following members.

David Giesselman (USA)
