• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151760

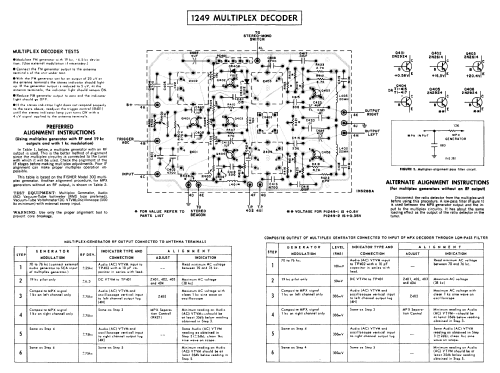

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• EC900 6CW4 6CW4 EF94 EF94 EF94 EF94 EF94 EF93 ECC83 ECC83 6BL8

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 9 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM MPX Tuner FM200C - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 385 x 123 x 300 mm / 15.2 x 4.8 x 11.8 inch

• Notes

• Automatic switching and display mono-stereo. Mute tuning, transmitter automatic arming. Output Voltage Regulator.
  8 transistors, 12 diodes.

  Automatische Umschaltung und Anzeige Mono-Stereo. Stummabstimmung, automatische Sender-Scharfabstimmung. Ausgangs-Spannungsregler.
  8 Transistoren, 12 Dioden.

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Price in first year of sale
• 1,960.00 DM

• Mentioned in
• HiFi Jahrbuch 1965/66 Seite 145

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
