• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1985 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 309496

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• -1

• Valves / Tubes

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

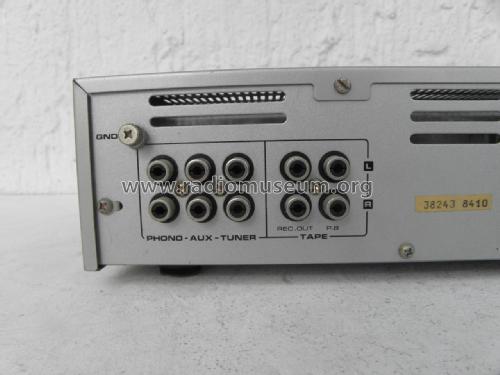

• Model: Integrated Stereo Amplifier CA-30 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 80 x 215 mm / 17.3 x 3.1 x 8.5 inch

• Notes

• This is a model for Europe.

  Ausgangsleistung: 20 Watt pro Kanal an 8Ω (Stereo)

  Frequenzgang: 40 Hz bis 20 kHz

  Harmonische Verzerrung insgesamt: 0,9%

  Dämpfungsfaktor: 20

  Eingangsempfindlichkeit: 2,5 mV (MM), 150 mV (Leitung)

  Rauschabstand: 64 dB (MM), 85 dB (Leitung)

  Made in Japan

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Author
• Model page created by Werner Wussow. See "Data change" for further contributors.
