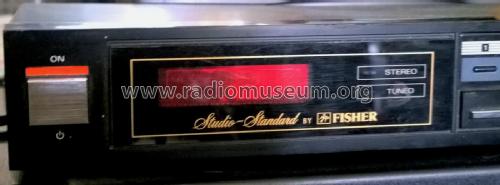

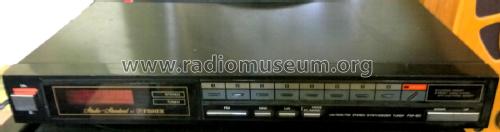

LW-MW-FM Stereo Synthesizer Tuner FM-60

Fisher Radio; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1989 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 282767

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Powered by external power supply or a main unit. / AC: 19 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: LW-MW-FM Stereo Synthesizer Tuner FM-60 - Fisher Radio; New York NY
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 400 x 208 x 55 mm / 15.7 x 8.2 x 2.2 inch
  • Notes

  • The Fisher FM-60 is an AC operated LW-MW-FM Stereo Synthesizer Tuner.  Has 8x Station Presets. Power supplied by companion integrated stereo amplifier CA-40.  Made in Japan.

    This unit was sold as part of a 3 unit system consisting of:
    FM-60     LW-MW-FM Stereo Synthesizer Tuner
    CA-40     Integrated Stereo Amplifier
    CR-W34  Stereo Double Cassette Deck

    NOTE: CA-40 listed above is the integrated stereo amplifier built in the 1980's and is NOT the Fisher CA-40 mono tube amplifier built in the 1950's.

  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
