• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128341

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF86 12AT7 12AU7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Master Audio Control 30-C - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 12.25 x 2.625 x 8 inch / 311 x 67 x 203 mm

• Notes
• PreAmp, mono; optional wood cabinet.

• Net weight (2.2 lb = 1 kg)
• 8 lb 0 oz (8 lb) / 3.632 kg

• Price in first year of sale
• 108.00 $

• Literature/Schematics (1)

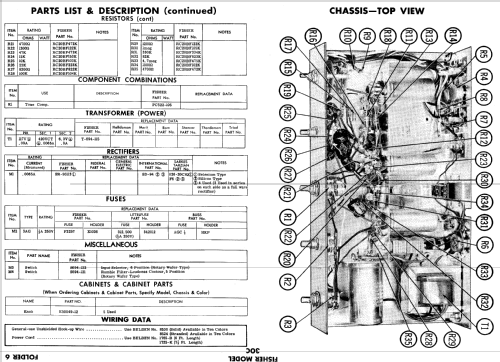

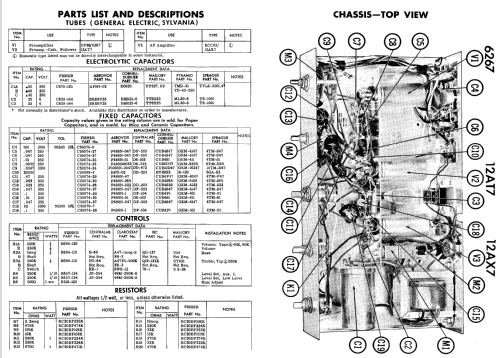

• Photofact Folder, Howard W. SAMS (Date 6-59, Set 444, Folder 6)

• Literature/Schematics (2)
• Radio Shack Catalog (1959; page 16)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
