• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1987 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140743

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF ? kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

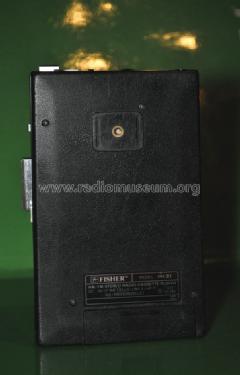

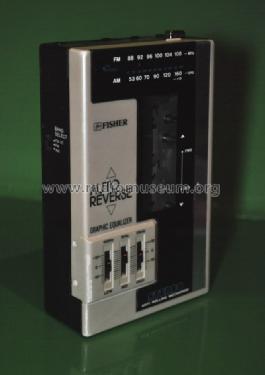

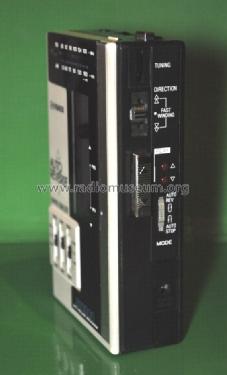

• Model: AM/FM Stereo Radio Cassette PH31 - Fisher Radio; New York NY

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 85 x 140 x 37 mm / 3.3 x 5.5 x 1.5 inch

• Notes
• Vollständiger Modellname "AM/FM Stereo Radio Cassette Player".
  FM Stereo/Mono umschaltbar. Kopfhörer der Fa.Fisher sind Original-Zubehör. Kopfhörerkabel dient gleichzeitig als Antenne. Klangregelung mit 3 Band Graphic Equalizer. Kassettenbetrieb mit Auto Reverse-Funktion wählbar. Netzspeisung über Netzadapter 3 V.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
