• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 165446

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 6SC7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

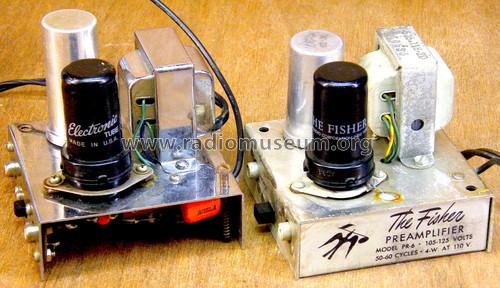

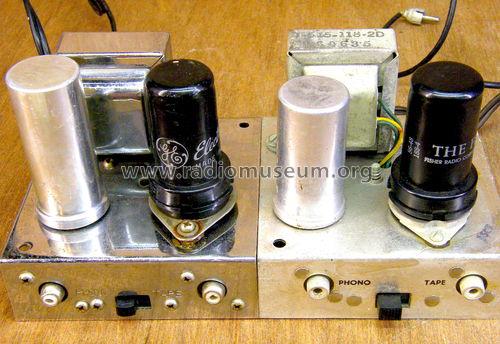

• Model: Preamplifier PR-6 - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 3.75 x 3.625 x 3.625 inch / 95 x 92 x 92 mm

• Net weight (2.2 lb = 1 kg)
• 2 lb 0 oz (2 lb) / 0.908 kg

• Price in first year of sale
• 13.00 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 398 Folder 8 dated 5-58)

• Literature/Schematics (2)
• Radio Shack Catalog (1959; Seite 16)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
