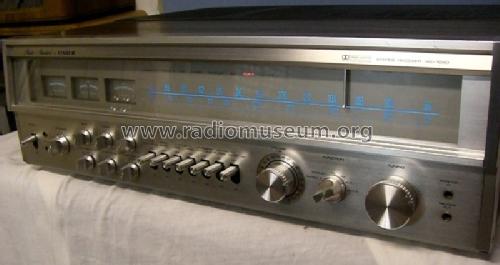

RS-1080
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147976
Original prospekt in 1977.
Fisher Sales Brochure
Fisher Sales Brochure

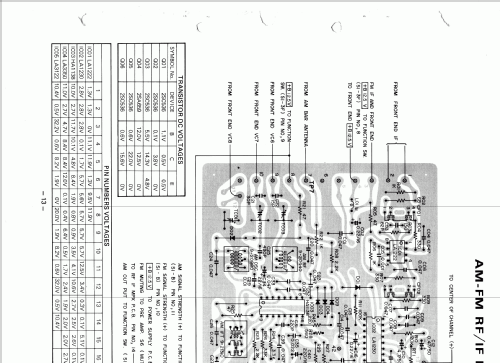

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 380 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RS-1080 - Fisher Radio; New York NY
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 610 x 190 x 420 mm / 24 x 7.5 x 16.5 inch
- Notes
- AM/FM-Stereo-Receiver mit 2 x 190 Watt Sinus an 4 Ohm.
- Net weight (2.2 lb = 1 kg)
- 33.3 kg / 73 lb 5.6 oz (73.348 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
