SA-100
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 128339
Original Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

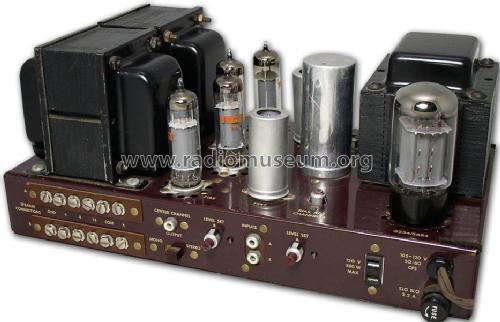

- Model: SA-100 - Fisher Radio; New York NY
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12.56 x 6.75 x 7.125 inch / 319 x 171 x 181 mm
- Notes
- Stereo power amp, 2x 25 watts; with center channel output.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 490 folder 6 date 6-60)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
