Stereo Master Control Amplifier X-101 X101ST

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128131

• Picture

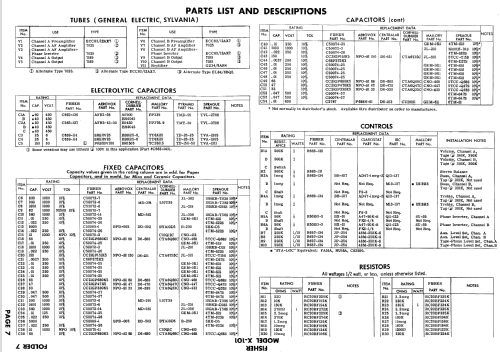

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 12AX7 12AX7 6BQ5 6BQ5 6BQ5 6BQ5 5AR4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

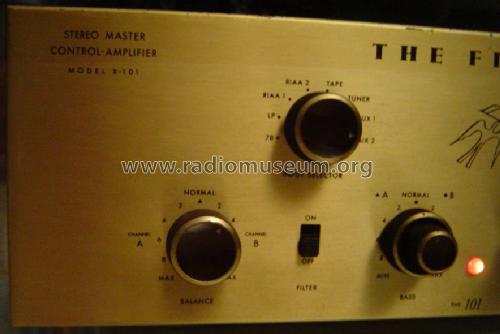

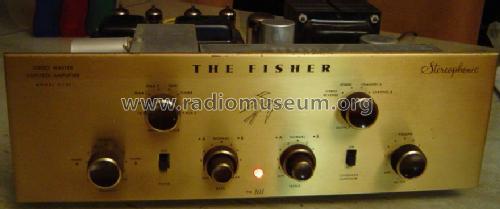

• Model: Stereo Master Control Amplifier X-101 X101ST - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 13.375 x 4.8 x 13 inch / 340 x 122 x 330 mm

• Notes
• Several phono equalization settings. Model = X-101; Chassis = X-101-ST.

• Net weight (2.2 lb = 1 kg)
• 30 lb 0 oz (30 lb) / 13.620 kg

• Price in first year of sale
• 190.00 $

• Mentioned in
• Radio Shack Catalog (1959; page 17)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
