• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328044

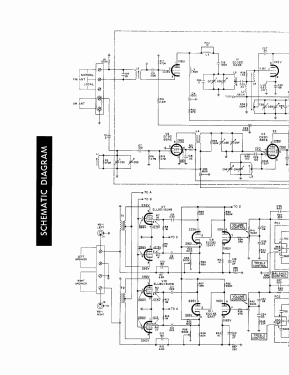

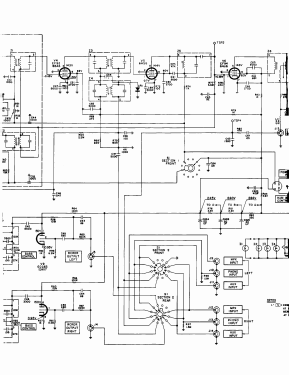

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• EF93 ECC85 EF93 EK90 6HS6 EF94 ECC83 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Philharmonic IV Model P-29 Ch= 290-T - Fisher Radio; New York NY

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Stereo console with optional drop-in FM-MPX decoder model MPX-77;
  the same chassis 290-T is used in the Fisher 'Diplomat' D-38 console.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 591 models, 504 with images and 204 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fisher Radio; New York (NY)
