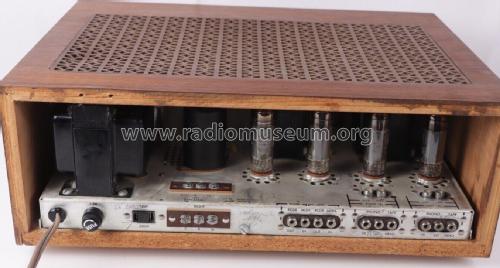

StrataKit Control Amplifier KX-90
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1965
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 347314
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: StrataKit Control Amplifier KX-90 - Fisher Radio; New York NY
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 15.125 x 4.813 x 11.875 inch / 384 x 122 x 302 mm
- Notes
-
Integrated amplifier, stereo, in kit form.
Output is 40W (2 x 20W) with +/-0.5% harmonic distortion.
Price listed is for chassis only; Walnut cabinet optional for additional $24.95
- Net weight (2.2 lb = 1 kg)
- 20 lb (20 lb 0 oz) / 9.080 kg
- Price in first year of sale
- 99.50 $
- Mentioned in
- -- Original prospect or advert (Electronics Illustrated, May 1965, page 1, "...new Fisher KX-90 StrataKit".)
- Literature/Schematics (1)
- - - Manufacturers Literature (Fisher Handbook 1968, page 72, The Fisher KX-90.)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
