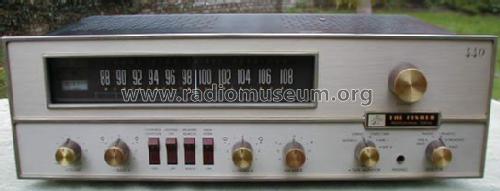

Transistor FM-MPX Receiver 440-T
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26711
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 14 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 56 W (70 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Transistor FM-MPX Receiver 440-T - Fisher Radio; New York NY
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 425 x 130 x 314 mm / 16.7 x 5.1 x 12.4 inch
- Notes
- HiFi-Stereo-Tuner-Verstärker. Ausgangsleistung 2× 28 W (Sinus); Nußbaum-Gehäuse gegen Mehrpreis (120,- DM).
Vertrieb über ELAC.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 2,330.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
