• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1963/1964

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 74549

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC83 ECC83 ECC83 ECC83 7247 7247 7189 7189 7189 7189 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 105-120; 210-240  Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 32 W (40 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Master Control Amplifier X-100 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 375 x 122 x 300 mm / 14.8 x 4.8 x 11.8 inch

• Notes

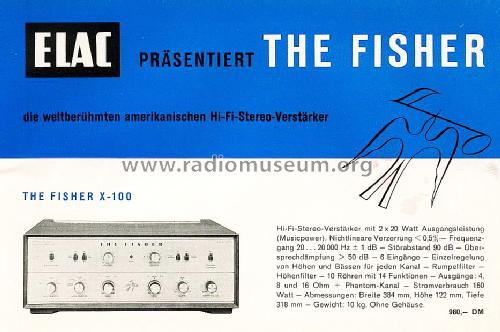

• Fisher Hi-Fi-Stereo-Verstärker X-100.
  Ausgangsleistung: 2× 20 W; Frequenzbereich 20–20000 Hz ±1 dB; nichtlineare Verzerrungen: <0,5 %; Übersprechdämpfung: >50 dB.
  6 Eingänge; getrennte Höhen- und Tiefenregler für jeden Kanal; Rumpelfilter; Höhenfilter; Ausgänge für 4, 8, 16 Ω und Phantom-Kanal.
  Aluminium-Front.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 980.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
