• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Fleetwood (brand of C&A Odlin); Wellington

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345857

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 477 - Fleetwood brand of C&A Odlin;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

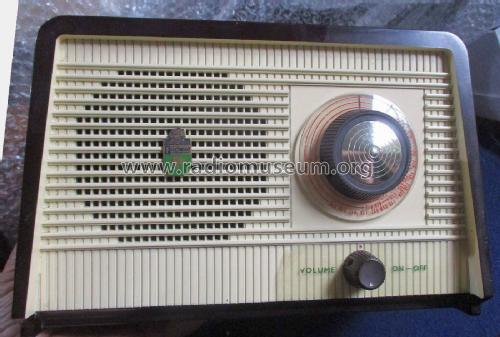

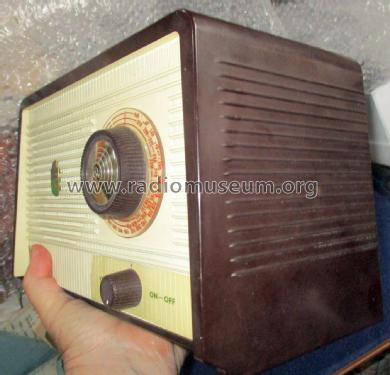

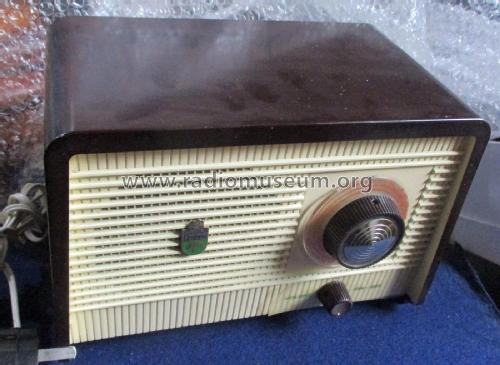

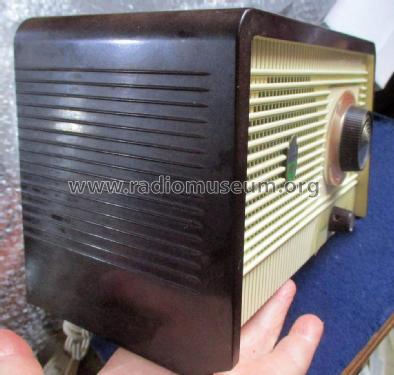

• 4 valve superhet broadcast (MW) AC/DC mantel receiver.

  See also Philips BZ166U.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
