• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Fleetwood (brand of C&A Odlin); Wellington

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347663

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EBF89 ECC83 EL84 EM80 or EM81 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

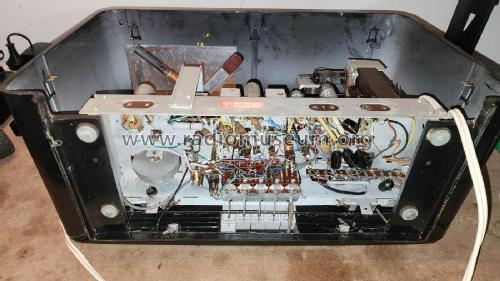

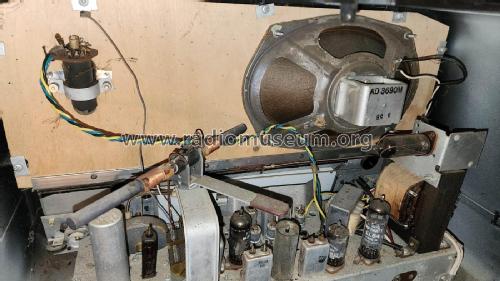

• Model: Admiral 566F - Fleetwood brand of C&A Odlin;

• Shape
• Tablemodel, with any shape - general.

• Notes

• 6 valve (including magic eye) all wave superhet mantle model receiver with provision for gramphone pickup and extension speaker. 4 band, bandspread as follows:

  • MW: 517 - 1622 kHz
  • SW1: 3.1 - 10.1 MHz
  • SW2: 12.5 - 26.5 MHz
  • BS: 9.35 - 12.2 MHz

  See also Philips B5Z66A Hilversum using the same chassis.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
