• Country
• Canada

• Manufacturer / Brand
• Electrical Products Mfg. Co. Ltd.; later Fleetwood Corporation; Montreal

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306603

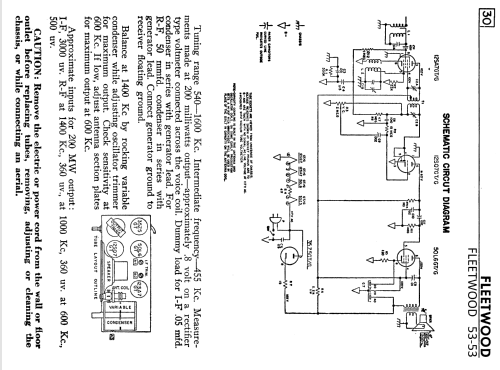

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12SA7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Fleetwood 53-53 - Electrical Products Mfg. Co.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8.25 x 5.25 x 4 inch / 210 x 133 x 102 mm

• Notes

• The Fleetwood model 53-53 is a 4-tube table radio for standard broadcast reception. Requires a wire antenna.

  The I.D. tag specifies 117 volt, 0.3 amp, 25/60 cycle power.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 30)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
