• Country
• Canada

• Manufacturer / Brand
• Electrical Products Mfg. Co. Ltd.; later Fleetwood Corporation; Montreal

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 301414

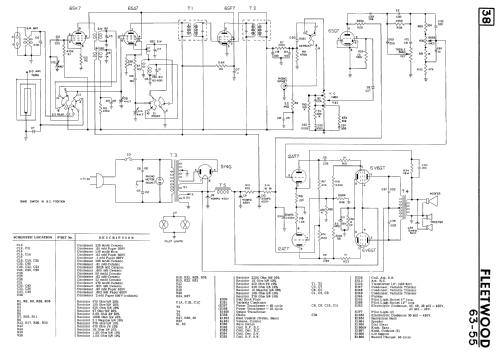

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7 6SA7 6SF7 6SQ7 12AT7 6V6GT 6V6GT 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fleetwood 63-55 - Electrical Products Mfg. Co.

• Shape
• Console with any shape - in general

• Notes

• The Fleetwood model 63-55 is an 8-tube console radio with built in phonograph. Has bass and treble controls. For 25 or 60 Hz depending on nameplate rating.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1955 Supplement 35)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
