Grundig-Fleetwood SO-112 (CA)

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1960 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 123129
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 110-220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 14 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Grundig-Fleetwood SO-112 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 43.25 x 29.25 x 13.75 inch / 1099 x 743 x 349 mm
  • Notes

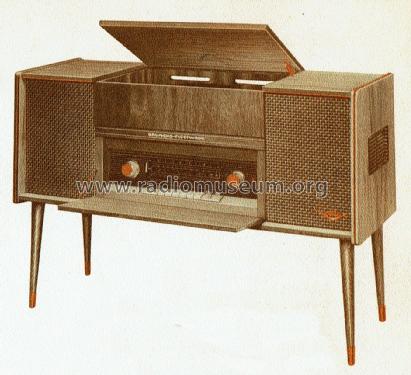

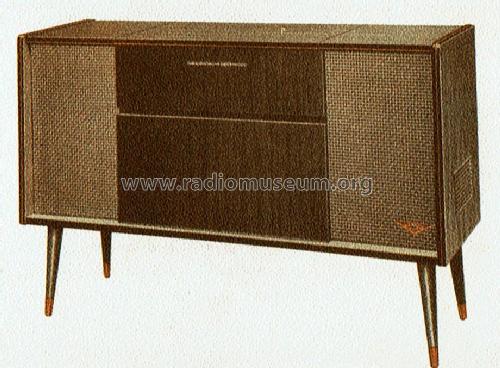

  • The Grundig-Fleetwood model SO-112 is an FM-AM-Shortwave console with built-in stereo phonograph. Made in Germany for the Canadian market. It was quite likely exported to Canada with the assistance of Electrical Products Mfg. Co. Ltd of Montreal (Fleetwood Canada), but this can not be 100% confirmed at this time.
    See also the Grundig SO112US made for the USA market, and the Grundig SO112 made for the German domestic market.

    Note that Canadian models might be marked model SO-112CA (with CA suffix).

  • Mentioned in

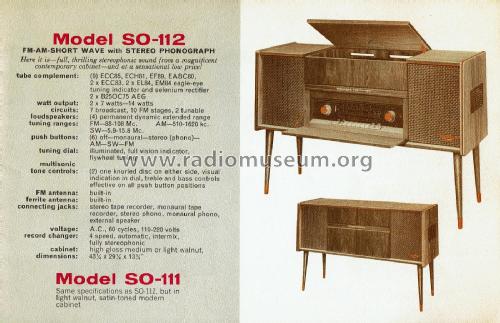

  • -- Original prospect or advert
  • Author
  • Model page created by Dave Brown. See "Data change" for further contributors.
