Digital Multimeter 8600A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 1974

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 170066

• Picture
• Schematics

Previous Next

Previous Next

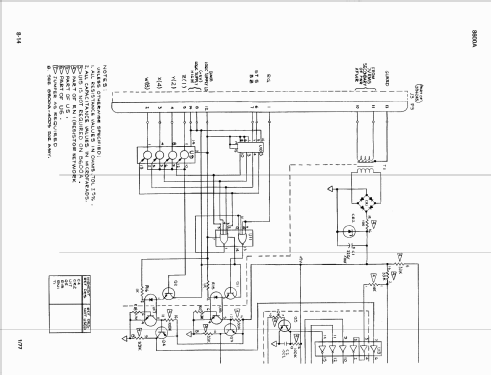

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 115; 230 / 4 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter 8600A - Fluke, John, Mfg. Co. Inc.;

• Shape
• Tablemodel, with any shape - general.

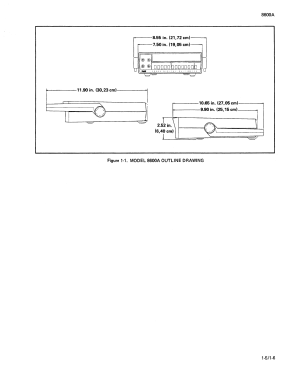

• Dimensions (WHD)
• 217 x 64 x 271 mm / 8.5 x 2.5 x 10.7 inch

• Notes
• DC Voltage: 200 mV - 1200 V;
  AC Voltage: 200 mV - 1200 V;
  DC Current: 200 µA - 2000 mA;
  AC Current: 200 µA - 2000 mA;
  Ohms : 200 Ohm - 20 MOhm;
  Full autoranging except the current ranges. 4 1/2 Digits.

  Options: 8600A-01 basic unit w/battery option,
  8600A-02 basic unit w/data output unit.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Rollmann. See "Data change" for further contributors.
