High Voltage test Probe 80K-6
Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Year
- 1981
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 191051
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: High Voltage test Probe 80K-6 - Fluke, John, Mfg. Co. Inc.;
- Dimensions (WHD)
- 240 x 55 x 55 mm / 9.4 x 2.2 x 2.2 inch
- Notes
- High voltage probe designed to extend the voltage measuring capability of an ac/dc voltmeter to 6000 volts peak AC or DC; dual banana plug; voltage range from 0 to 6kV, DC or peak AC; input impedance 75 megohms; 1000:1 voltage divider; accuracy DC to 500Hz +/- 1%, 500Hz to 1KHz +/- 2%; compatible with any AC or DC voltmeter that has an input impedance of 10 megohms +/- 10%
- Net weight (2.2 lb = 1 kg)
- 2 lb 13 oz (2.813 lb) / 1.277 kg
- Source of data

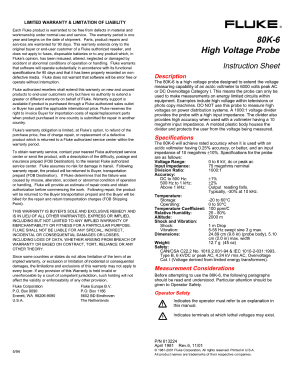

- -- Original-techn. papers.
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
