• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 1965 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 169241

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AT7 12AX7 EM87

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Universal Impedance Bridge 710BR - Fluke, John, Mfg. Co. Inc.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 327 x 205 x 130 mm / 12.9 x 8.1 x 5.1 inch

• Notes

• AC (internal oscillator) and DC impedance measurements are possible, also with external frequency source.

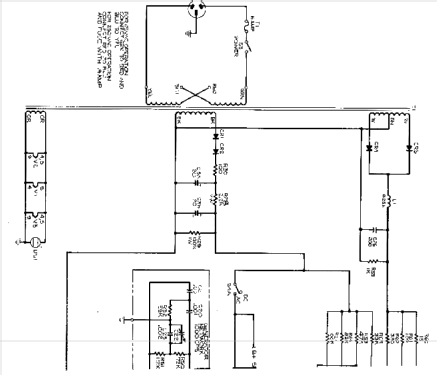

  For schematics see also Fluke 710B

• Literature/Schematics (4)
• -- Original prospect or advert

• Author
• Model page created by Roger Brinkman. See "Data change" for further contributors.
