True RMS Digital Multimeter 87
Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fluke, John, Mfg. Co. Inc.; Everett (WA)
- Year
- 1988
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 285907
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: True RMS Digital Multimeter 87 - Fluke, John, Mfg. Co. Inc.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3.41 x 7.35 x 1.25 inch / 87 x 187 x 32 mm
- Notes
-

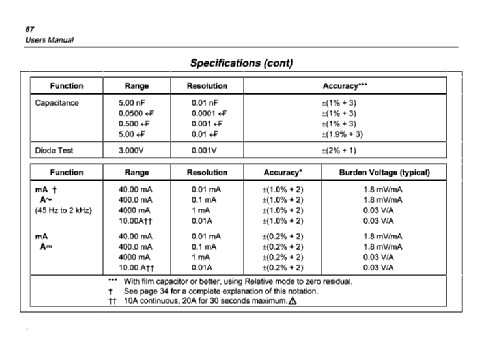

The Fluke 87 True RMS Multimeter is a handheld, 4000-count instrument that can read frequencies between 0.5 Hz and 200 kHz with up to 0.01 Hz resolution. Detailed specifications are included in the schematic files.
The dimensions and weight noted are for the meter only without the case.
- Net weight (2.2 lb = 1 kg)
- 0 lb 12.5 oz (0.781 lb) / 0.355 kg
- Author
- Model page created by David Erali. See "Data change" for further contributors.
