DC Power Supply TR-9253

• Country
• Hungary

• Manufacturer / Brand
• Fok-Gyem Szövetkezet; Budapest

• Year
• 1966

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 154850

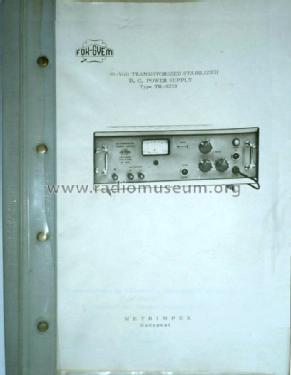

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: DC Power Supply TR-9253 - Fok-Gyem Szövetkezet; Budapest

• Dimensions (WHD)
• 490 x 200 x 280 mm / 19.3 x 7.9 x 11 inch

• Notes
• 30 V / 2,5 A.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Technika, 1966/01

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
