• Country
• United States of America (USA)

• Manufacturer / Brand
• Ford Motor Co. (FoMoCo); Detroit and Dearborn, MI

• Year
• 1952 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 353347

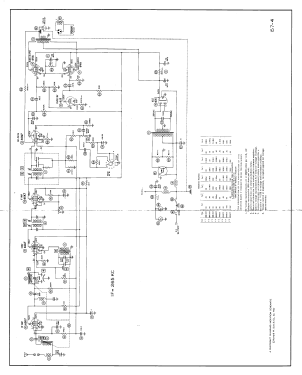

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6J5GT 6V6GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 265 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 1CFT751-2 Ch= 1A-18805-G - Ford Motor Co. FoMoCo; Detroit

• Shape
• Chassis only or for «building in»

• Notes

• Ford model 1CFT751-2 is a battery operated custom built automobile superheterodyne receiver. Vibrator for +B.



• Literature/Schematics (1)

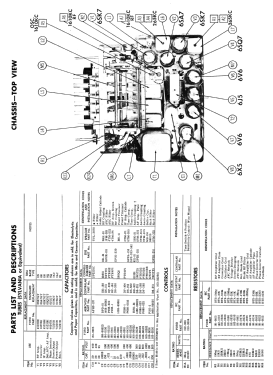

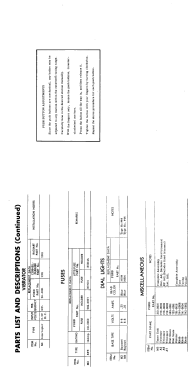

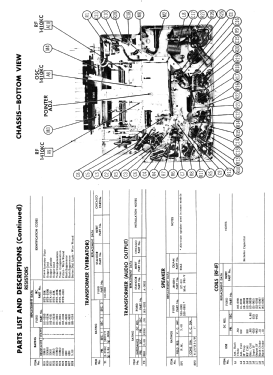

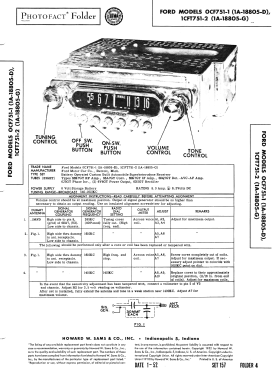

• Photofact Folder, Howard W. SAMS (Set 157, folder 4, dated 1-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
