94BF Ch= B9A-18805-A
Bendix Radio Division; Baltimore, MD
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1959
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 147222
Sams Photofact Folders

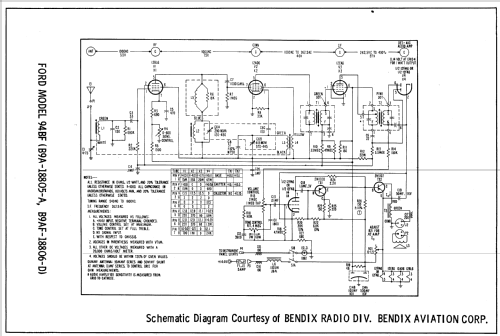

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 262.5 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: 94BF Ch= B9A-18805-A - Bendix Radio Division;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 220 x 90 x 230 mm / 8.7 x 3.5 x 9.1 inch
- Notes
- Car radio for dashboard fixing, 5 preset push buttons for 1959 Ford Automobiles.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-59, Set 446, Folder 8)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
