• Year
  • 1951
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 147555

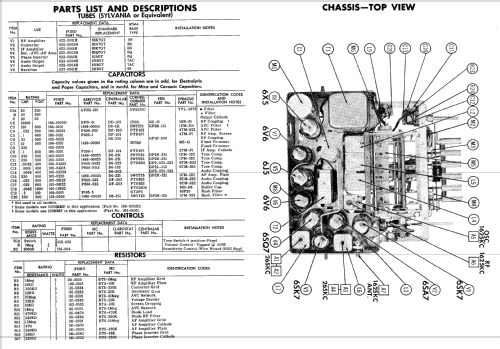

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 265 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Lincoln 1CH748-1 Ch= 1H-18805 - Ford Motor Co. FoMoCo; Detroit
  • Shape
  • Chassis only or for «building in»
  • Notes
  • External 6" x 9" PM elliptical speaker; Vibrator for +B.

  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
