• Year
  • 1948 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 231635

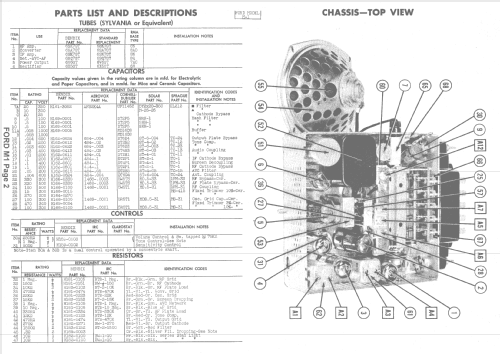

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 262,5 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: M-1 Ch= 8A-18805A - Ford Motor Co. FoMoCo; Detroit
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Battery Operated Custom Built Automotive Superheterodyne Receiver.

    Vibrator built in.
