• Year
  • 1951
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 147554

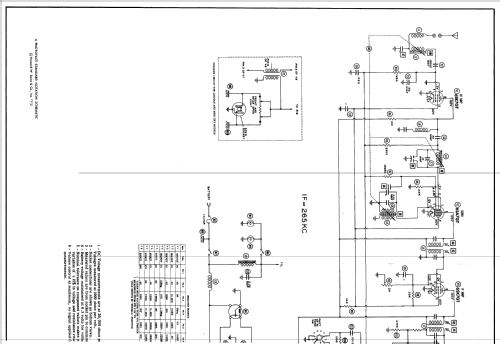

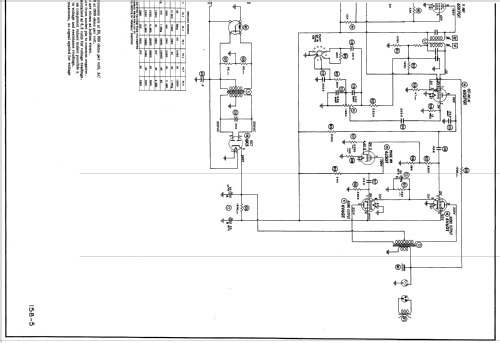

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 265 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mercury 1CM747-1 Ch= 1M-18805 - Ford Motor Co. FoMoCo; Detroit
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 270 x 120 x 275 mm / 10.6 x 4.7 x 10.8 inch
  • Notes
  • External 6" x 9" PM elliptical speaker; Vibrator for +B.

  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
