Baby-3D 0/60-60
Framus (Marke), Wilfer
- Country
- Germany
- Manufacturer / Brand
- Framus (Marke), Wilfer
- Year
- 1959/1960
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 22943
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Power out
- 6 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

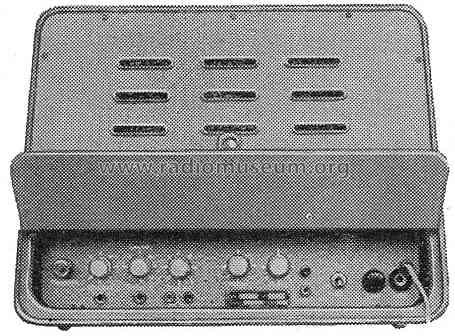

- Model: Baby-3D 0/60-60 - Framus Marke, Wilfer
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 310 x 180 mm / 16.5 x 12.2 x 7.1 inch
- Notes
- Framus Mischverstärker (Gitarrenverstärker) Baby-3D 0/60-60.
Frequenzbereich: 40···16000 Hz ± 2 dB; 3 Eingänge, Ausgang: 5 Ohm.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 324.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb
