Framus-Konsul 3D
Framus (Marke), Wilfer
- Country
- Germany
- Manufacturer / Brand
- Framus (Marke), Wilfer
- Year
- 1956/1957
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 22936

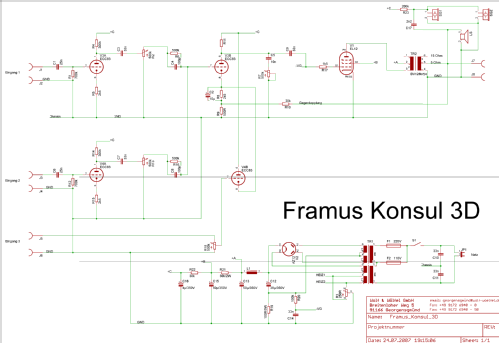

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Framus-Konsul 3D - Framus Marke, Wilfer
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 310 x 180 mm / 16.5 x 12.2 x 7.1 inch
- Notes
- Wilfer Framus-Konsul 3D.
10-W-Mischverstärker; Frequenzbereich: 40-16000 Hz; 4 Eingänge; Ausgang: 5 Ohm, Brummabstand: 50 dB; auch als Gitarrenverstärker geeignet; 3-D-Ausführung.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 435.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
