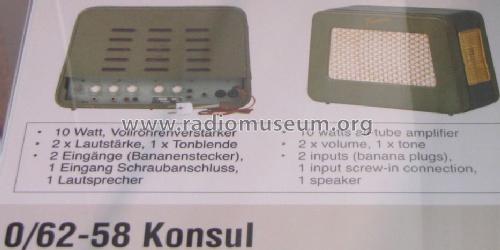

Konsul-3D 0/62-58
Framus (Marke), Wilfer
- Country
- Germany
- Manufacturer / Brand
- Framus (Marke), Wilfer
- Year
- 1958/1959
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 94142
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Guitar Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 117; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24.5 cm = 9.6 inch
- Power out
- 10 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Konsul-3D 0/62-58 - Framus Marke, Wilfer
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 310 x 180 mm / 15.4 x 12.2 x 7.1 inch
- Notes
- Mischverstärker; Frequenzbereich 40-16000 Hz; 4 Eingänge, Ausgang 5 Ohm.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 435.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
