• Country
• Argentina

• Manufacturer / Brand
• Franklin, Buenos Aires

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178444

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2.2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

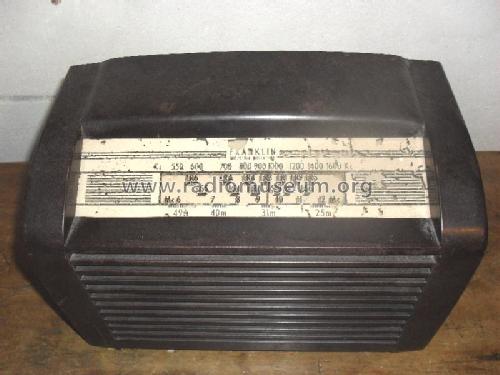

• Model: F07AU - Franklin, Buenos Aires

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Esta Radio posee Antena de Cuadro y Conexion externa de Antena y Tierra.

• Author
• Model page created by Dario Marujo. See "Data change" for further contributors.
