• Country
• Argentina

• Manufacturer / Brand
• Franklin, Buenos Aires

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 346263

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AC125 AC125 OC75 OC75 AC128 AC128 OC70 OA79

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

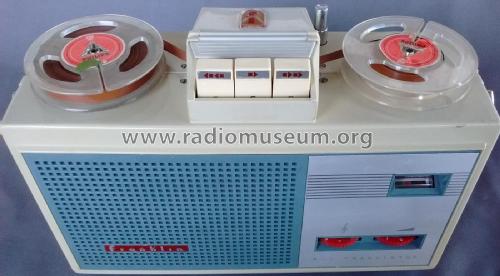

• Model: FR7101 - Franklin, Buenos Aires

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 195 x 95 mm / 11 x 7.7 x 3.7 inch

• Notes

• Modelo similar a:
  NL: Philips EL3586 /00
  D: Philips RK5L - EL3586 /22

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Author
• Model page created by Jorge Juan Stark. See "Data change" for further contributors.
