• Country
• Argentina

• Manufacturer / Brand
• Franklin, Buenos Aires

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330890

• Number of Tubes
• 6

• Valves / Tubes
• UCH81 UAF42 UF89 UL84 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.2 cm = 6 inch

• Material
• Wooden case

• from Radiomuseum.org

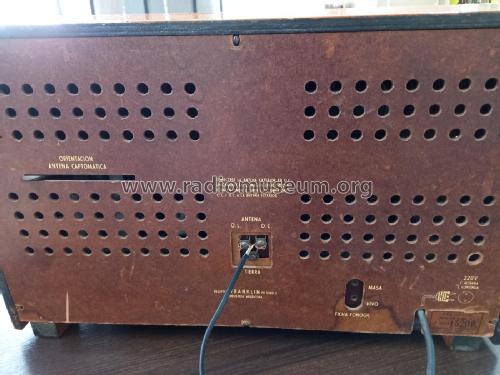

• Model: FR5080U - Franklin, Buenos Aires

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 300 x 200 mm / 23.6 x 11.8 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Author
• Model page created by Julio Alberto Sanz-Litardi. See "Data change" for further contributors.
