• Country
• United States of America (USA)

• Manufacturer / Brand
• Freed-Eisemann Radio Corp.; New York, NY

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40912

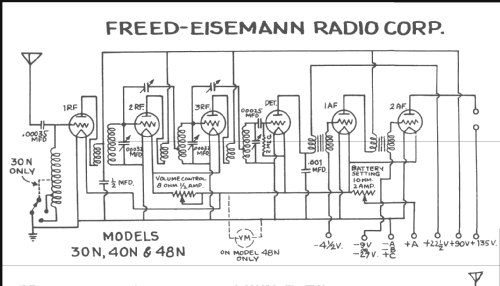

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 40 [1926 Model] - Freed-Eisemann Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Probably same as model NR40. One dial (primary tuning control knob)

• Price in first year of sale
• 85.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition
