• Country
• United States of America (USA)

• Manufacturer / Brand
• Freed-Eisemann Radio Corp.; New York, NY

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 339936

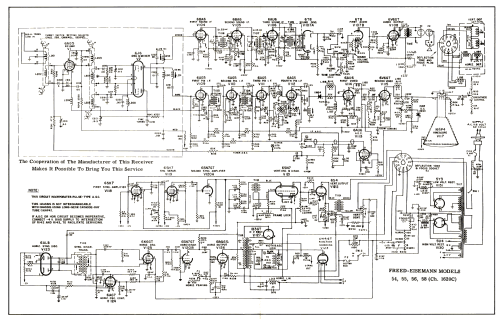

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 28

• Valves / Tubes
• 6AG5 6J6 6BA6 6BA6 6AU6 6T8 6V6G 6AG5 6AG5 6AG5 6AG5 6AU6 6V6GT 6AU6 6SK7 6SH7 6SN7GT 6SN7 6S4 6AL5 6AC7 6K6GT 6BG6G 1B3GT 6W4GT 5Y3 5U4 16GP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 115V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 68 Ch= 1620C - Freed-Eisemann Radio Corp.;

• Notes

• Freed-Eisemann model 68 is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 1620C,a VHF tuner and picture tube 16GP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 113, Folder 1A dated 11-50)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
