• Country
• United States of America (USA)

• Manufacturer / Brand
• Freed-Eisemann Radio Corp.; New York, NY

• Year
• 1942 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 40934

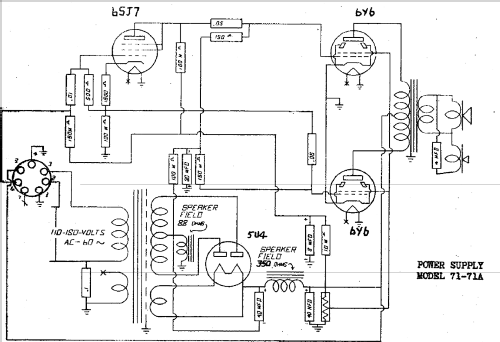

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6SJ7 6Y6 6Y6 5U4

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 71-71A Amp and Power supply - Freed-Eisemann Radio Corp.;

• Notes
• Push-pull audio amplifier.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943
