- Country
- United States of America (USA)
- Manufacturer / Brand
- Freed-Eisemann Radio Corp.; New York, NY
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40964

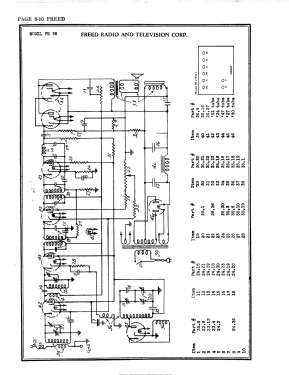

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FE-98 - Freed-Eisemann Radio Corp.;
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Price in first year of sale
- 64.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 3 = 1933 and before (page 3-10)
