• Country
• Spain

• Manufacturer / Brand
• Freixa, L., Manufacturas de Radio (Monitor); Barcelona

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332108

• Number of Transistors
• 4

• Semiconductors
• OC74 OC75 OC169 OC169

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

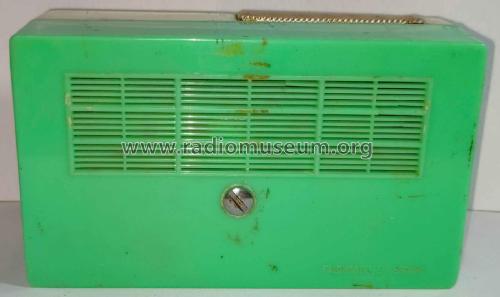

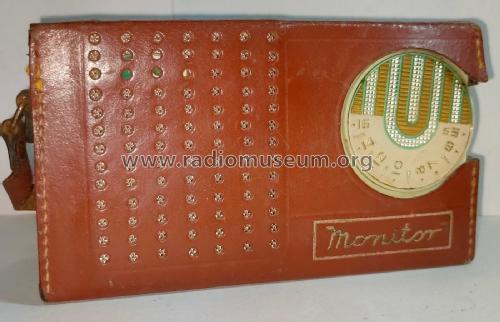

• Model: Monitor T-461 - Freixa, L., Manufacturas de

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 155 x 90 x 55 mm / 6.1 x 3.5 x 2.2 inch

• Price in first year of sale
• 1,575.00 Pts

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Joan lluis Madrenas-Palou. See "Data change" for further contributors.

• Other Models

• Here you find 18 models, 13 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
