Masterpiece 6-F-12 (6F12) Walnut

Freshman Co. Inc., Chas.., (Polydyne); New York

Data
Forum
Pictures
Collections

  • Year
  • 1926
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 41071
    • Brand: C.A.Earl

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Masterpiece 6-F-12 [Walnut] - Freshman Co. Inc., Chas..,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24.5 x 41 x 14.5 inch / 622 x 1041 x 368 mm
  • Notes

  • Three dials (primary tuning control knobs). Walnut cabinet.

    The new UX-200A Detector Tube should be used as it will give considerably more volume and pick up greater distance than the 201A. It is absolutely necessary that a good detector tube be used as microphonic and other noises are reproduced by this tube. A cone speaker is incorporated in the cabinet.



  • Net weight (2.2 lb = 1 kg)
  • 60 lb (60 lb 0 oz) / 27.240 kg
  • Price in first year of sale
  • 121.50 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
  • Literature/Schematics (4)

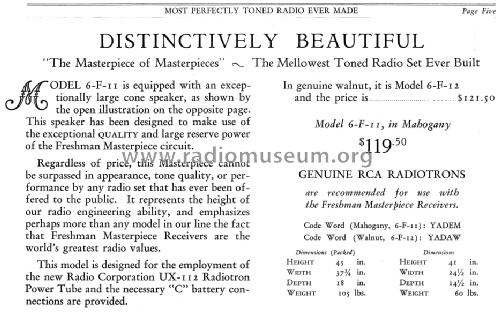

  • 1926 Chas. Freshman Company brochure for the 6-F series of radios.
