• Country
• United States of America (USA)

• Manufacturer / Brand
• Freshman Co. Inc., Chas.., (Polydyne); New York

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41077

• • Brand: C.A.Earl

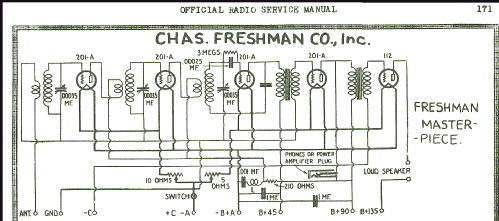

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX112

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case

• from Radiomuseum.org
• Model: Masterpiece 6F6 - Freshman Co. Inc., Chas..,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Three dials (primary tuning control knobs)

• Price in first year of sale
• 38.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Other Models

• Here you find 131 models, 79 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
