- Country
- Netherlands
- Manufacturer / Brand
- Fridor Fabrieken, N.V.; Den Haag
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96178
From an original technial document.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Material
- Wooden case
- from Radiomuseum.org

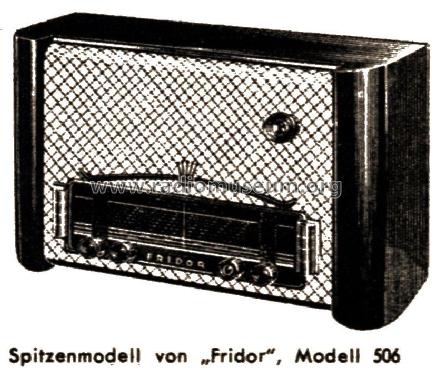

- Model: 506 - Fridor Fabrieken, N.V.; Den
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 345 x 235 mm / 26.4 x 13.6 x 9.3 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 385.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by John Koster. See "Data change" for further contributors.
