- Country
- Netherlands
- Manufacturer / Brand
- Fridor Fabrieken, N.V.; Den Haag
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94767

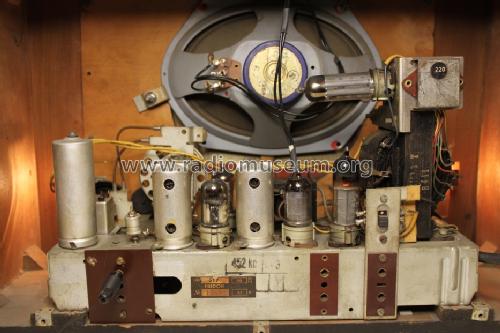

From auction website Marktplaats.

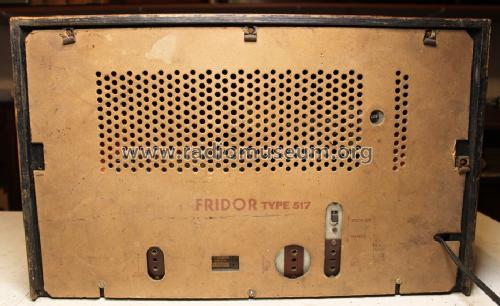

From auction website Marktplaats
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Power out
- 3.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 517 - Fridor Fabrieken, N.V.; Den
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 305 x 210 mm / 19.1 x 12 x 8.3 inch
- Price in first year of sale
- 315.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by John Koster. See "Data change" for further contributors.
