Melodiosa 48Z
Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag
- Country
- Netherlands
- Manufacturer / Brand
- Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96172

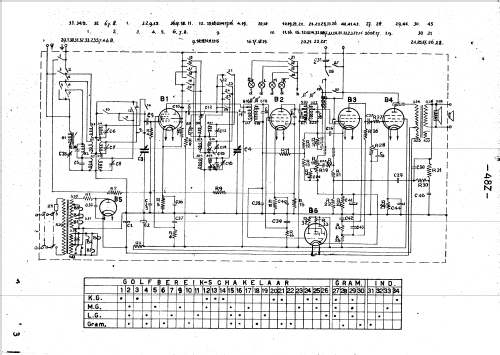

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Melodiosa 48Z - Waldorp, N.V. Ned.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 645 x 420 x 200 mm / 25.4 x 16.5 x 7.9 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 12.2 kg / 26 lb 14 oz (26.872 lb)
- Price in first year of sale
- 395.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Literature/Schematics (1)

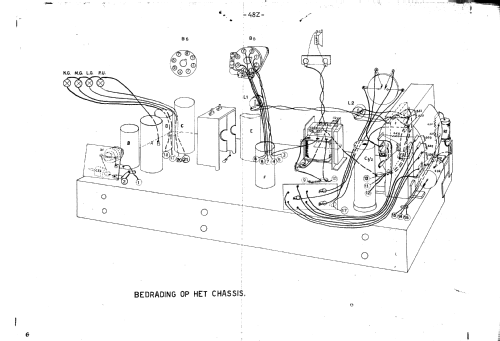

- -- Original-techn. papers.
- Author
- Model page created by John Koster. See "Data change" for further contributors.
